This page provides the complete Nucleo-F439ZI Pinout diagrams for the STM32 Nucleo-F439ZI development board. The Nucleo-F439ZI is based on the STM32F439ZIT6 microcontroller running at up to 180 MHz with 2MB flash and 256KB RAM. The F439ZI adds a hardware cryptographic and hash accelerator over the F429ZI but shares identical pin assignments.
Note: The pinout diagrams shown on this page are from the Nucleo-F429ZI, which has identical pin assignments to the Nucleo-F439ZI.
For reference, see also the Nucleo-F429ZI Pinout page which these diagrams are sourced from.
To view pin labels in detail, right-click any image and select Open image in new tab, then use Ctrl+Scroll to zoom.
Pinout Legend
Arduino / ZIO Headers

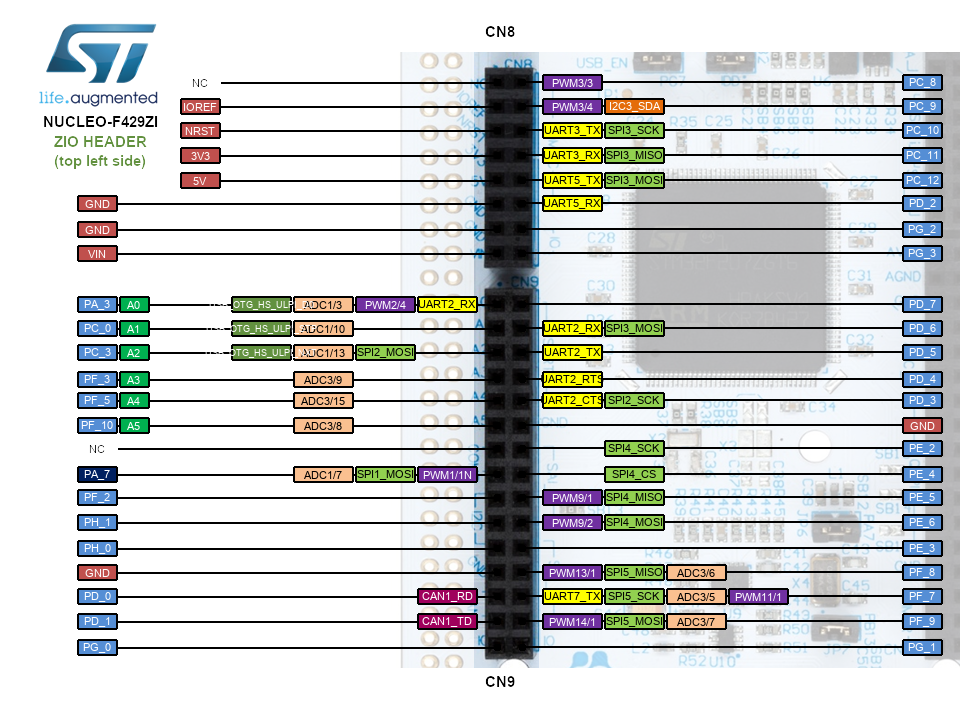

Arduino / ZIO Header (Top Left — CN6 / CN8)

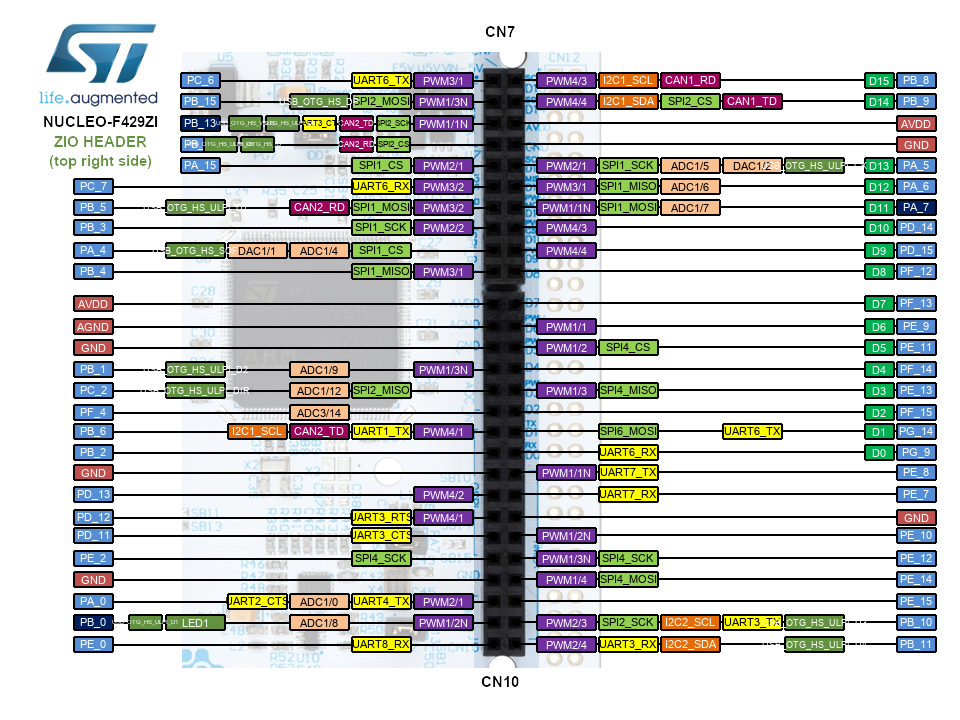

Arduino / ZIO Header (Top Right — CN5 / CN9)
Morpho Headers

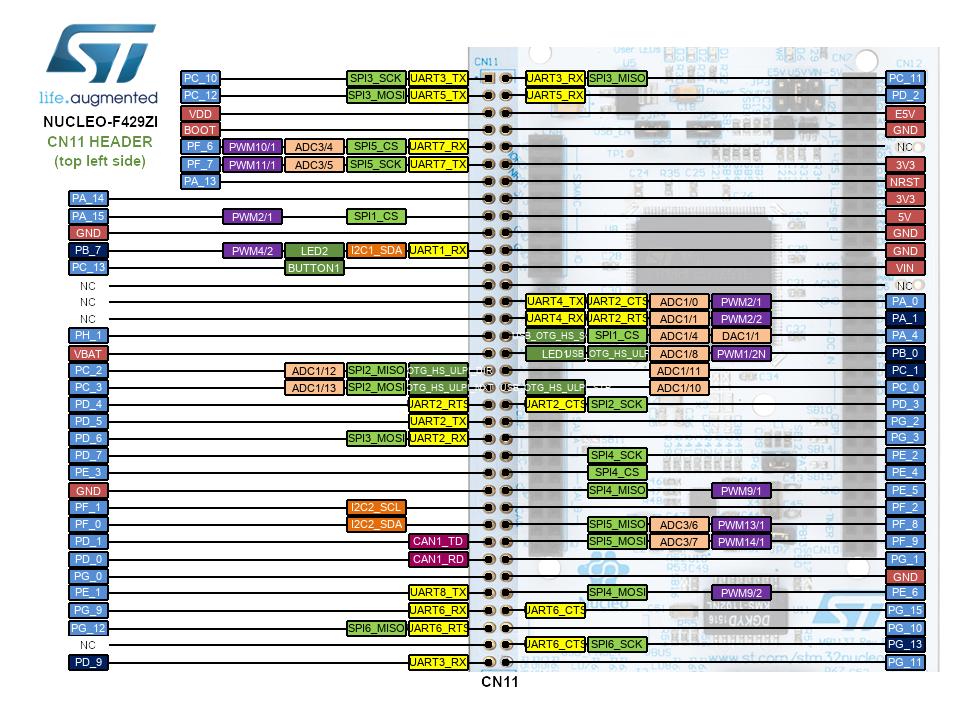

Morpho Header (Top Left — CN7)

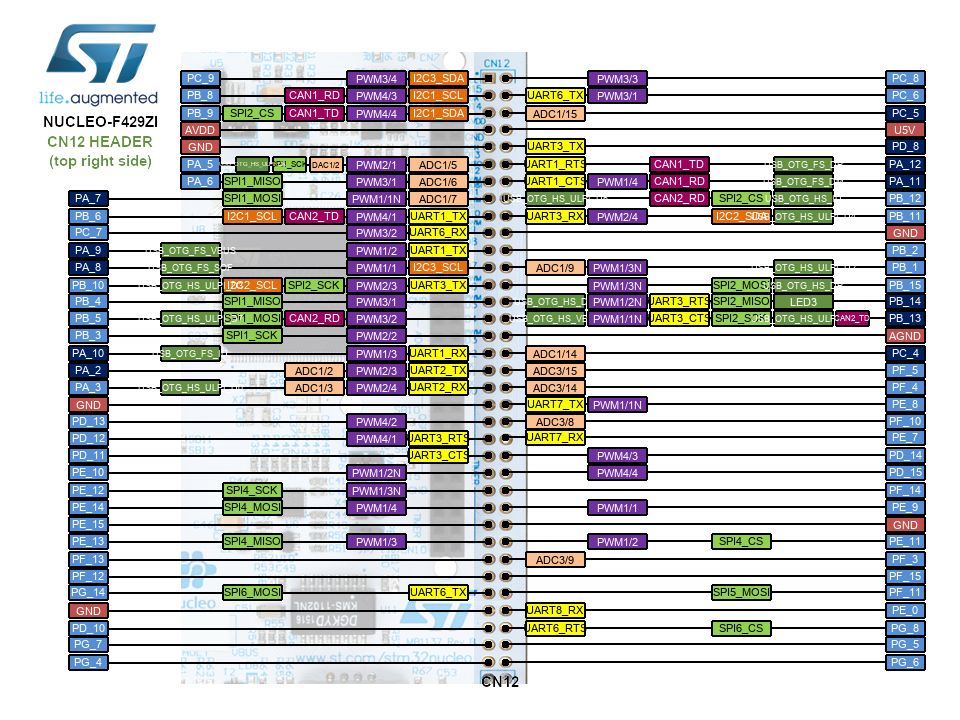

Morpho Header (Top Right — CN10)
