This page provides the complete Nucleo-F103RB Pinout diagrams for the STM32 Nucleo-F103RB development board. The Nucleo-F103RB is based on the STM32F103RBT6 microcontroller running at up to 72 MHz with 128KB flash and 20KB RAM. Diagrams include both Arduino and Morpho header pin assignments with alternate function labels.
To view pin labels in detail, right-click any image and select Open image in new tab, then use Ctrl+Scroll to zoom.

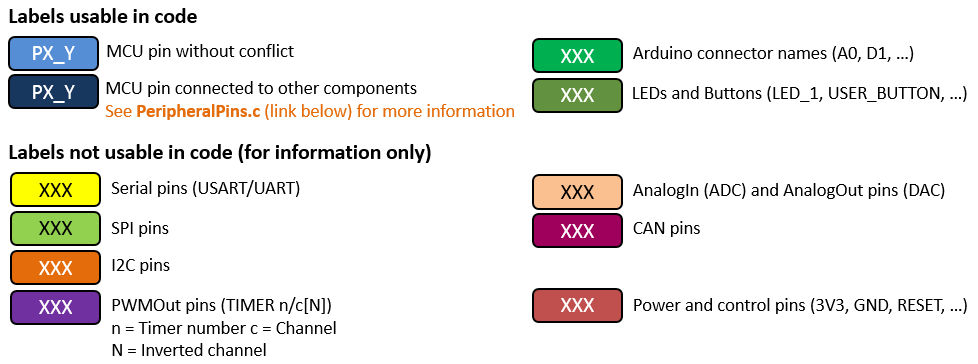

Pinout Legend
Arduino Headers

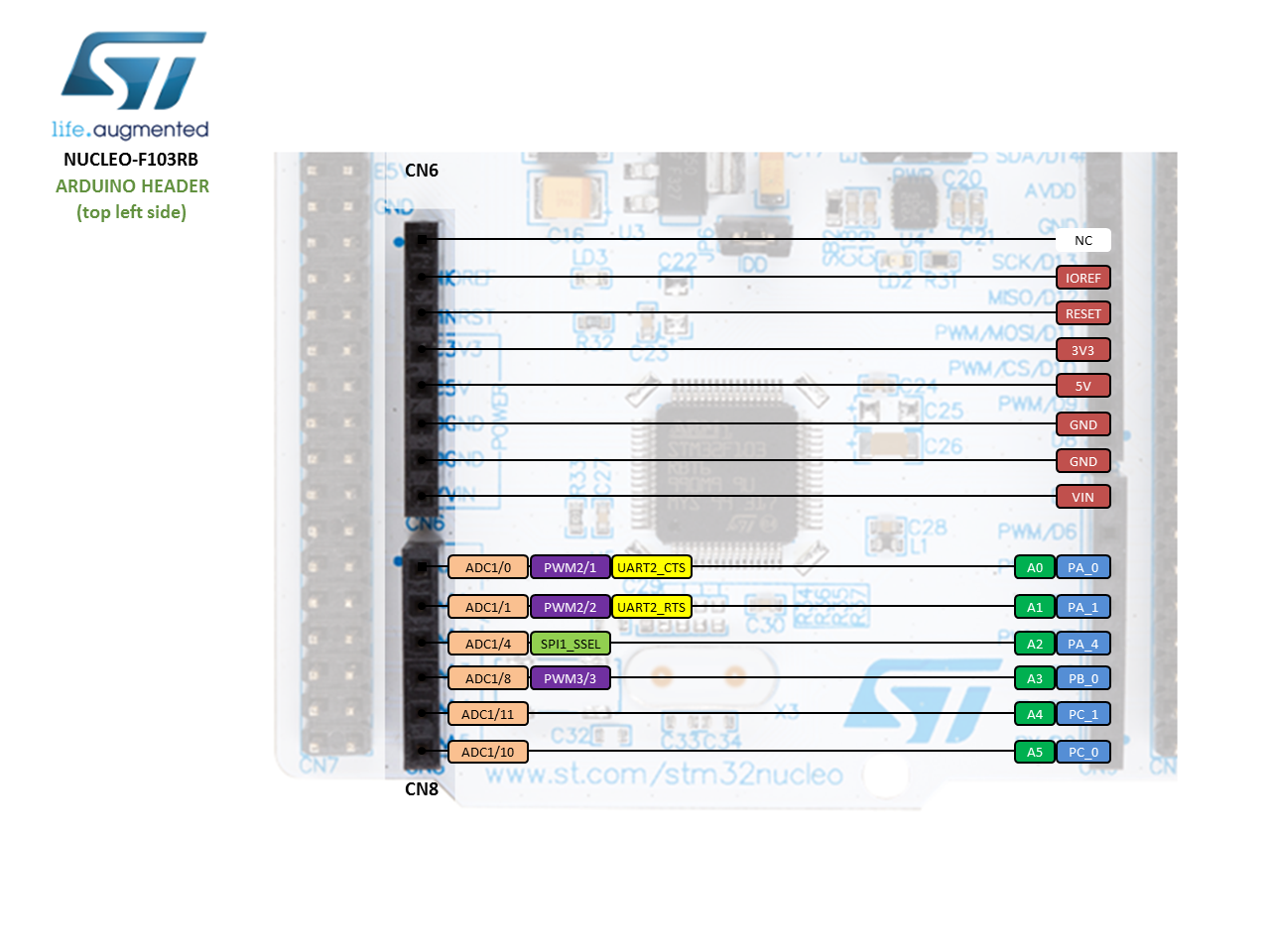

Arduino Header (Top Left — CN6 / CN8)

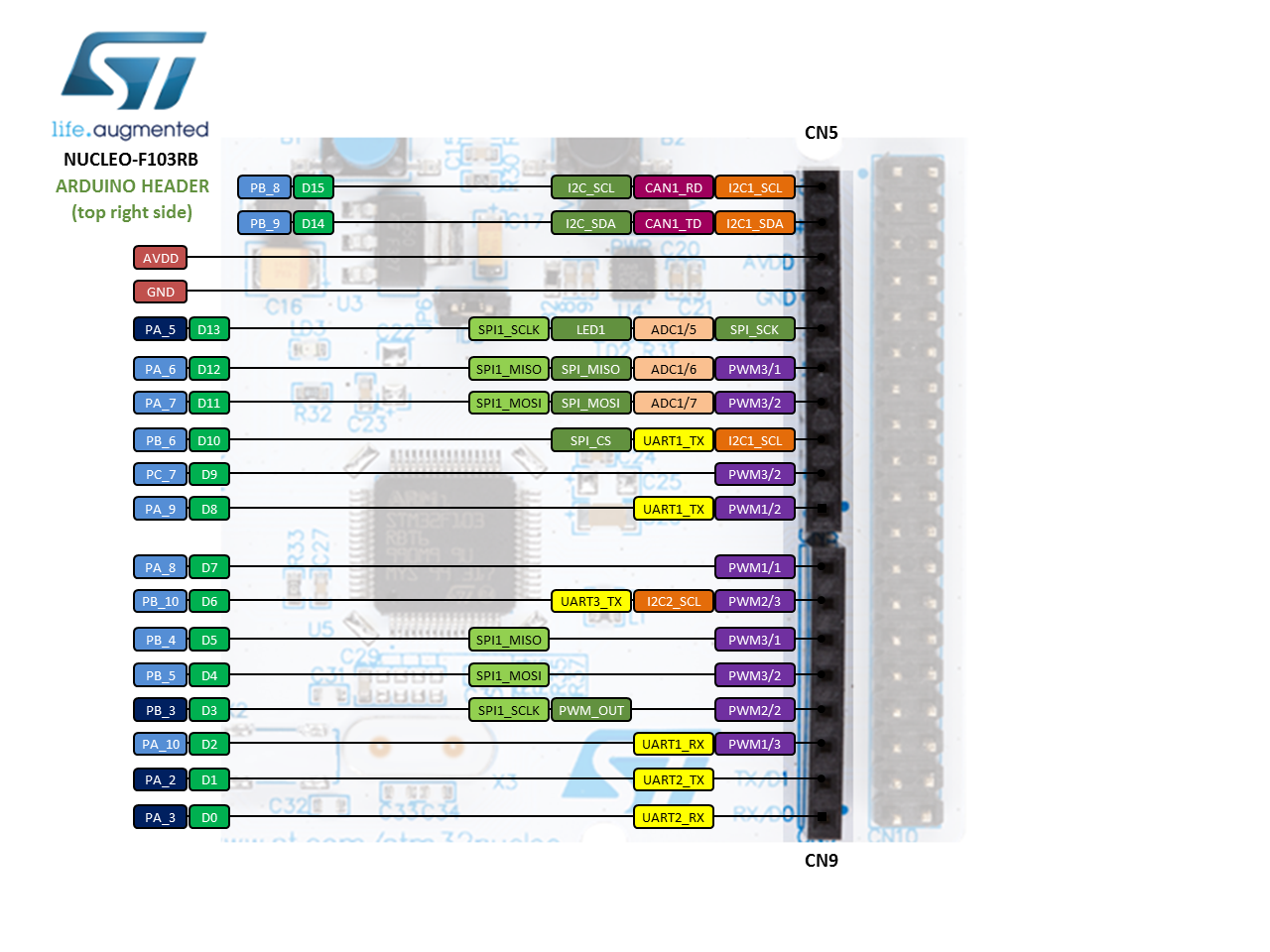

Arduino Header (Top Right — CN5 / CN9)
Morpho Headers

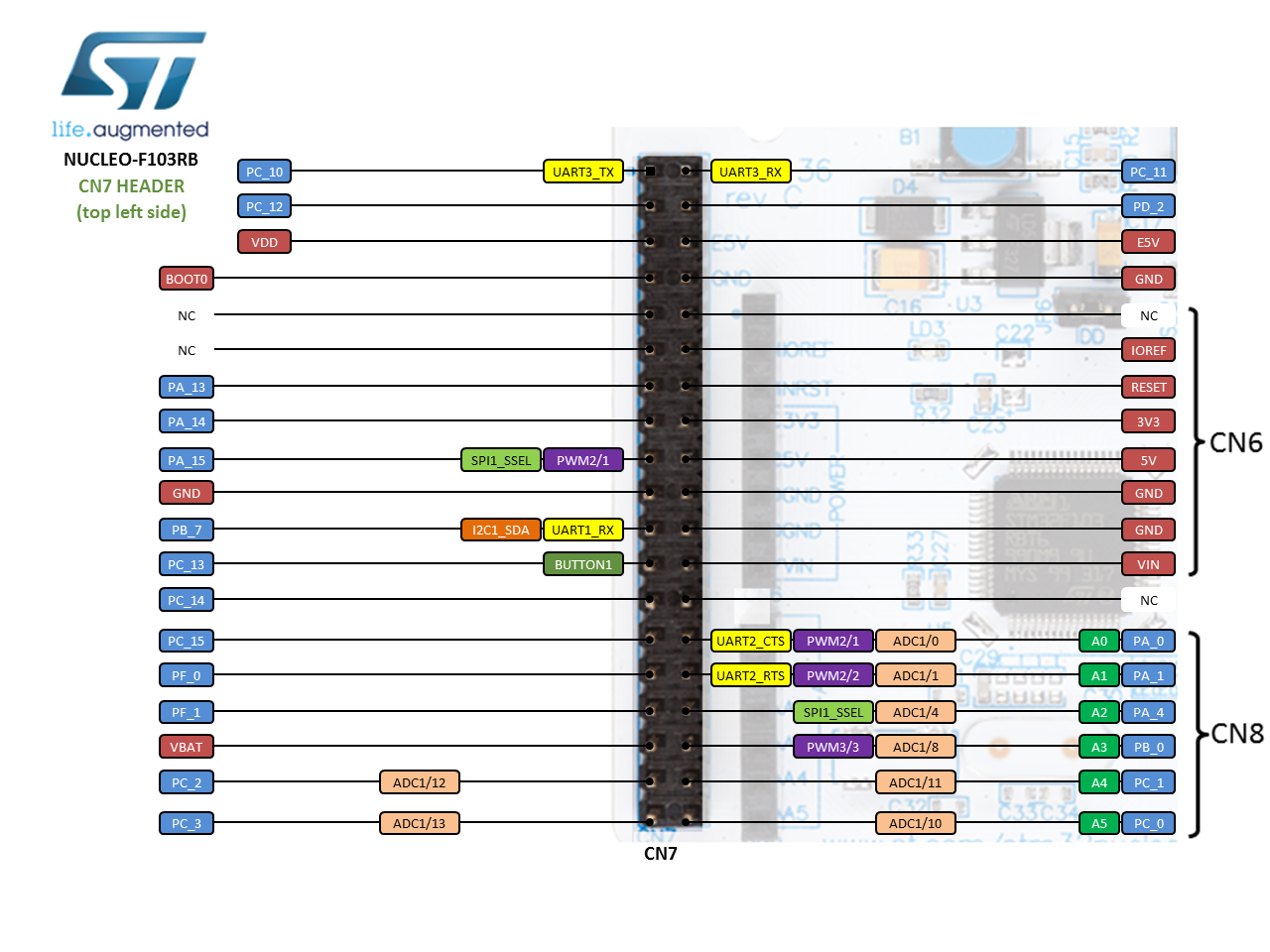

Morpho Header (Top Left — CN7)

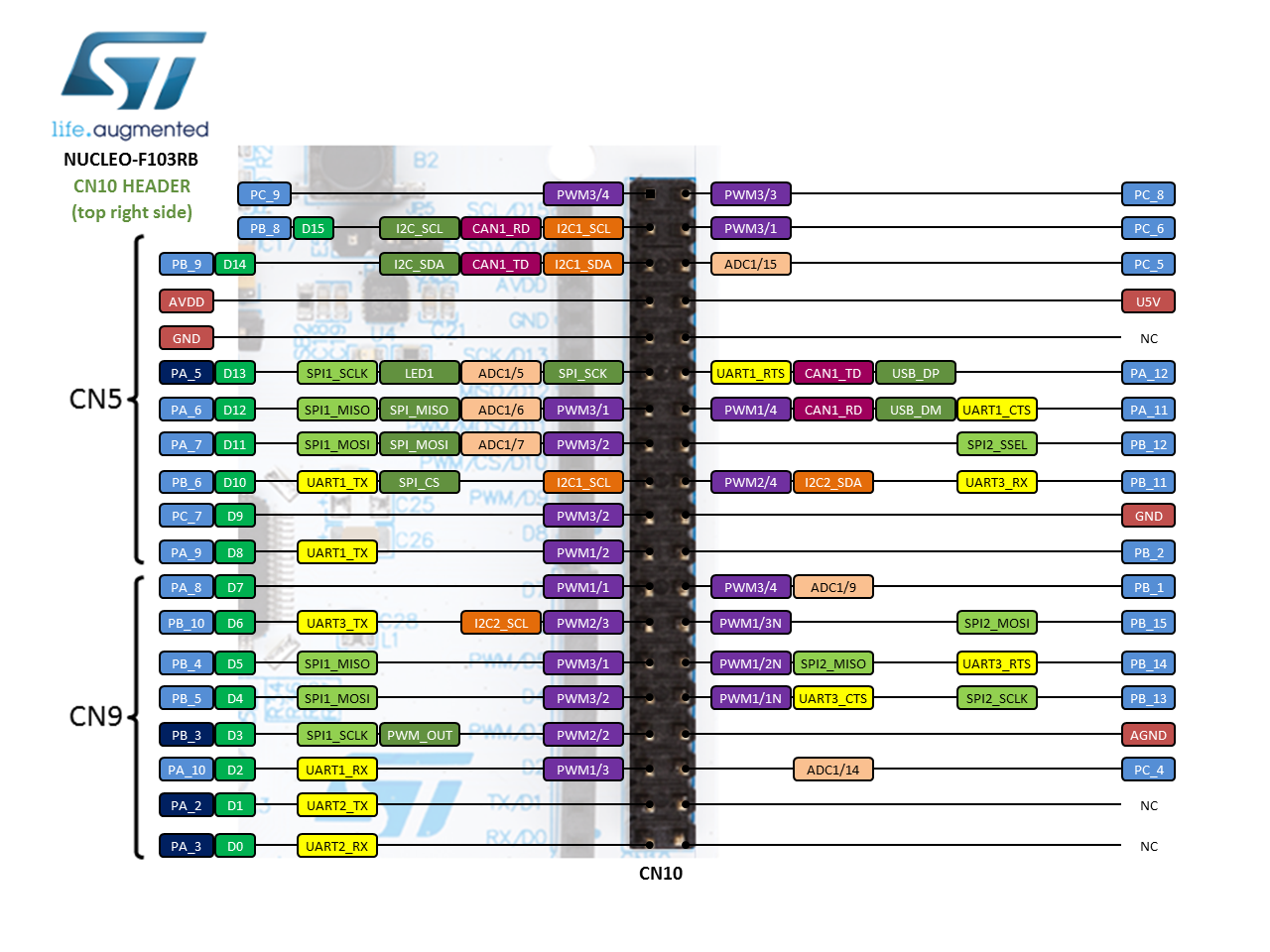

Morpho Header (Top Right — CN10)
