This page provides the complete Nucleo-L476RG Pinout diagrams for the STM32 Nucleo-L476RG development board. The Nucleo-L476RG is based on the STM32L476RGT6 microcontroller running at up to 80 MHz with 1MB flash and 128KB RAM. Diagrams include both Arduino and Morpho header pin assignments with alternate function labels.
To view pin labels in detail, right-click any image and select Open image in new tab, then use Ctrl+Scroll to zoom.
Pinout Legend
Arduino Headers

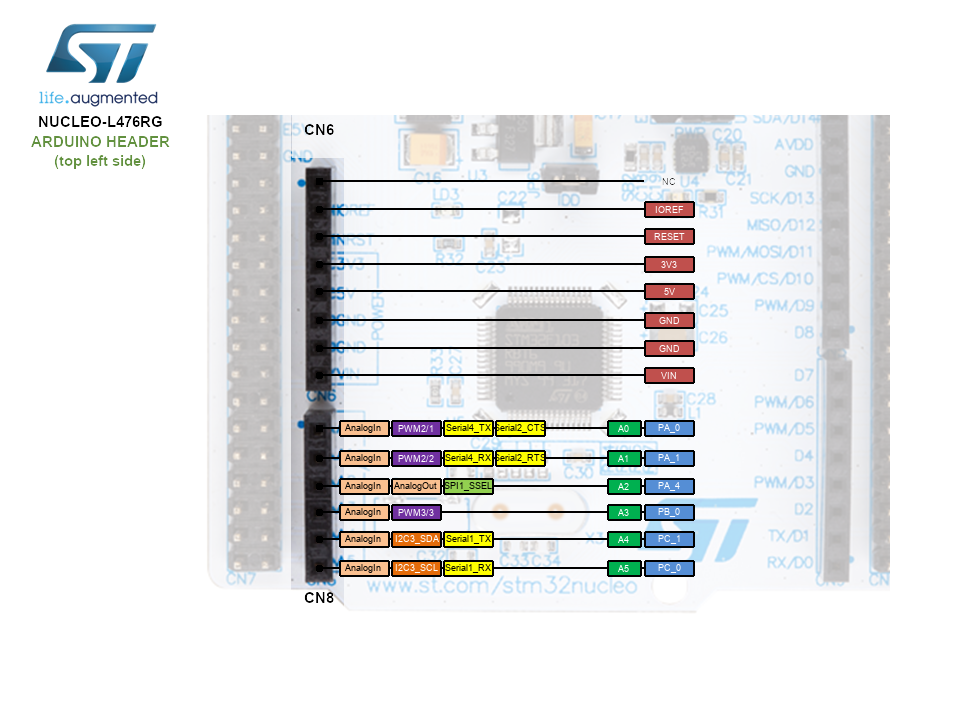

Arduino Header (Top Left — CN6 / CN8)

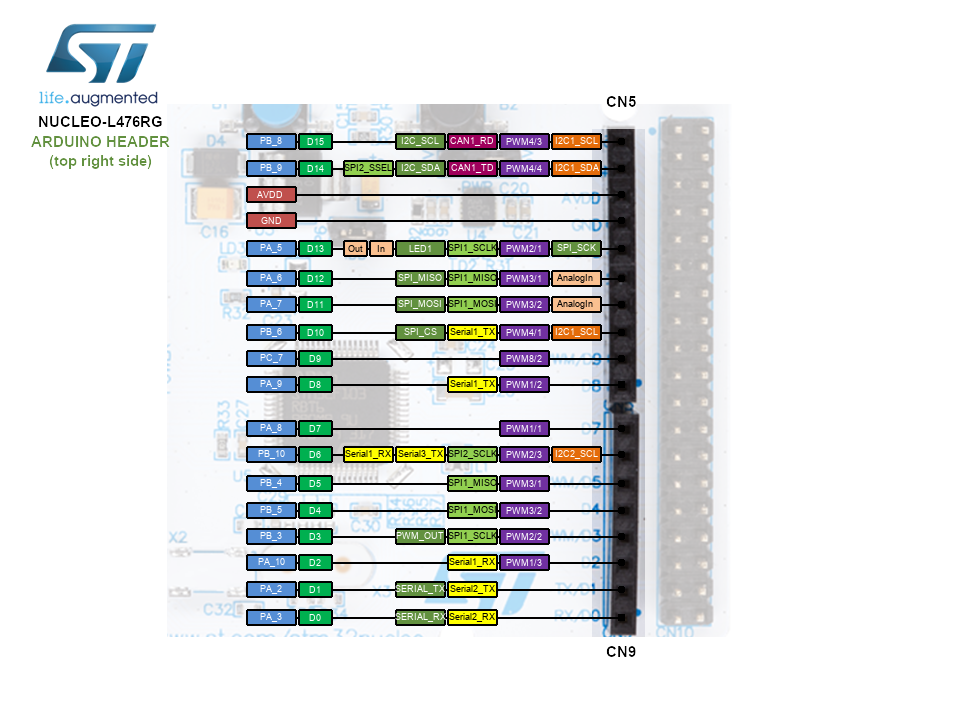

Arduino Header (Top Right — CN5 / CN9)
Morpho Headers

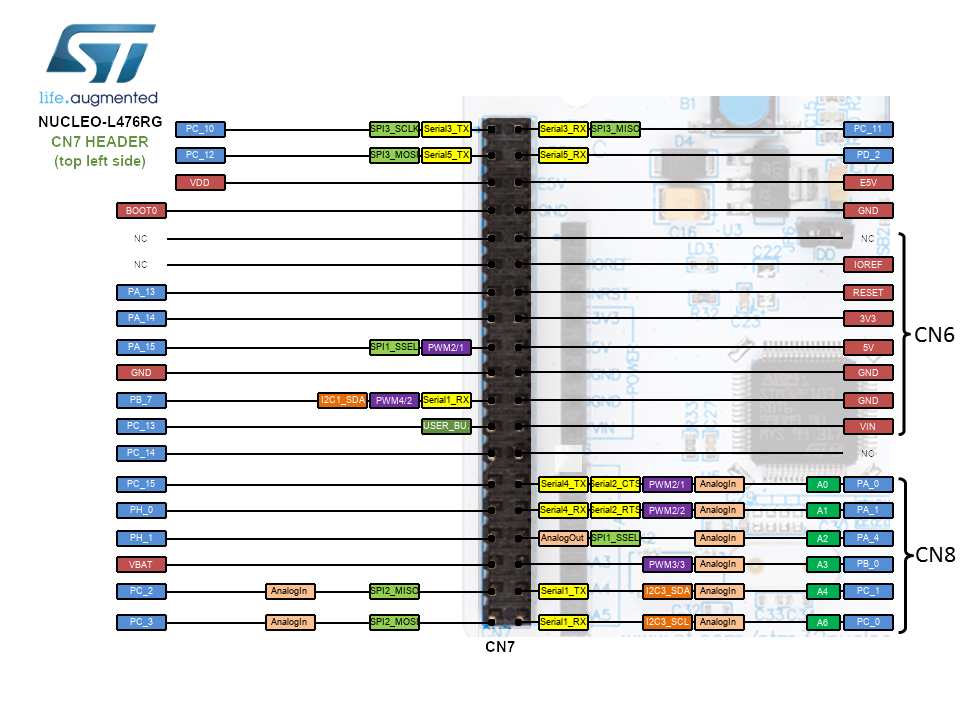

Morpho Header (Top Left — CN7)

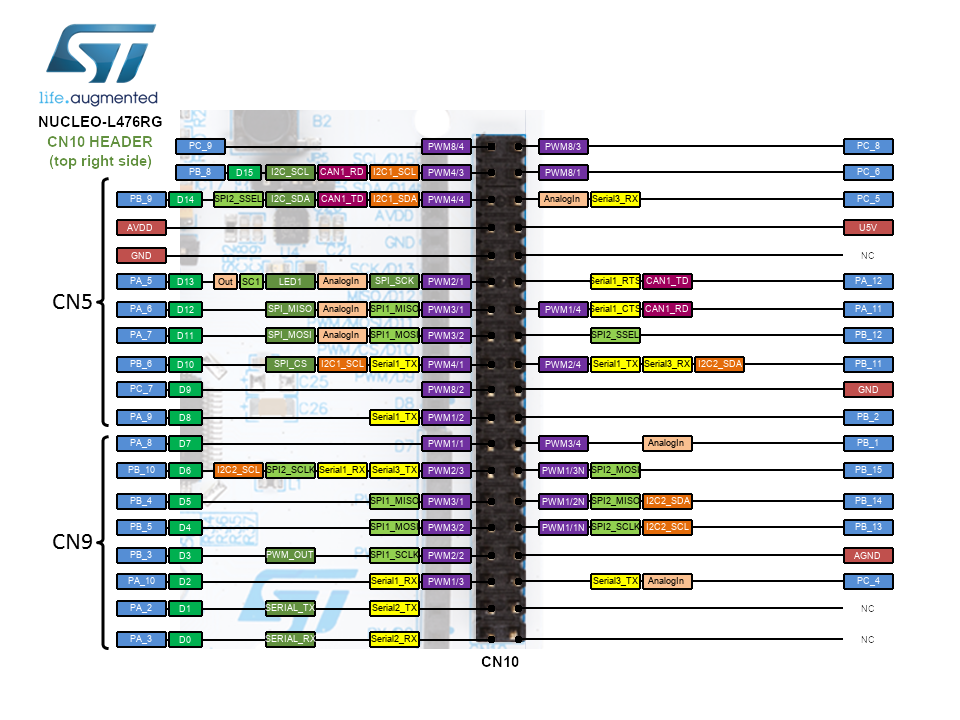

Morpho Header (Top Right — CN10)
