This page provides the complete Nucleo-F412ZG Pinout diagrams for the STM32 Nucleo-F412ZG development board. The Nucleo-F412ZG is based on the STM32F412ZGT6 microcontroller running at up to 100 MHz with 1MB flash and 256KB RAM. Diagrams include both Arduino / ZIO and Morpho header pin assignments with alternate function labels.
To view pin labels in detail, right-click any image and select Open image in new tab, then use Ctrl+Scroll to zoom.
Pinout Legend
Arduino / ZIO Headers

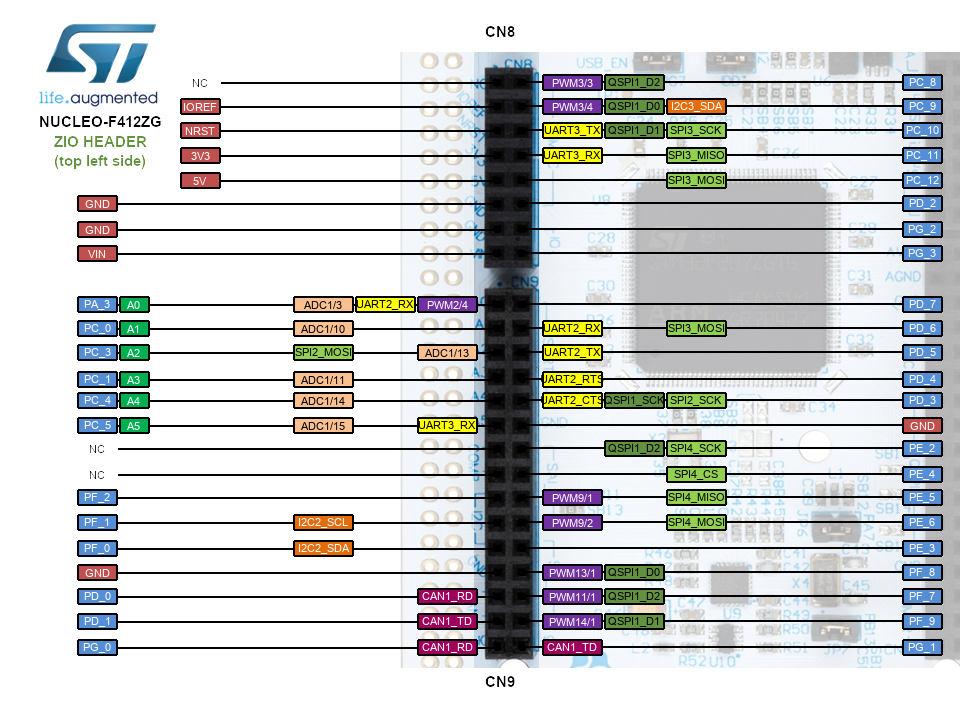

Arduino / ZIO Header (Top Left — CN6 / CN8)

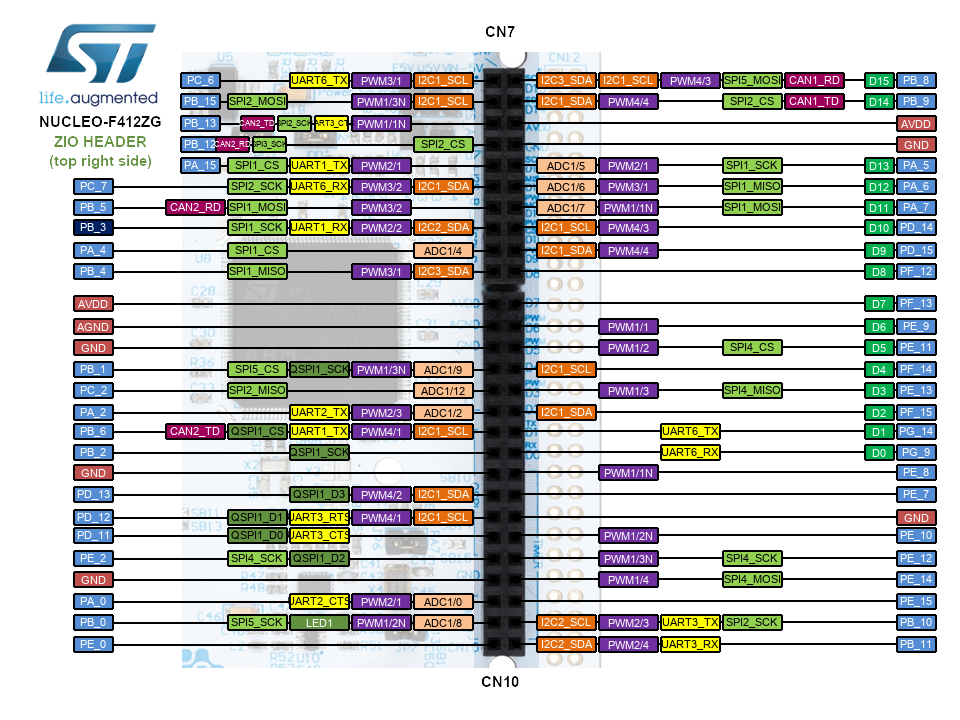

Arduino / ZIO Header (Top Right — CN5 / CN9)
Morpho Headers

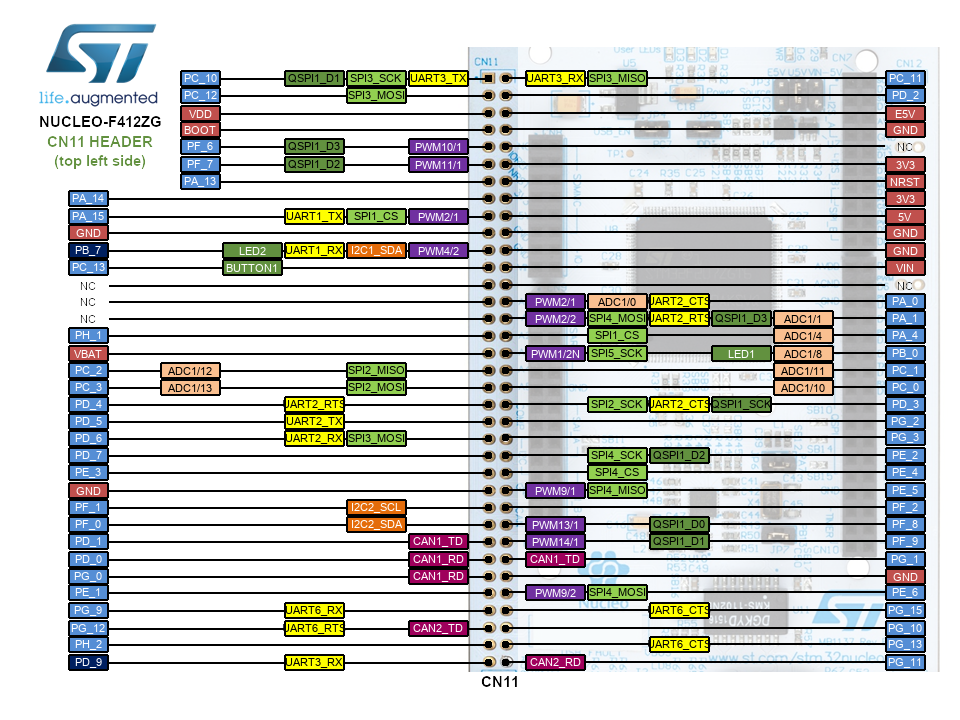

Morpho Header (Top Left — CN7)
Morpho Header (Top Right — CN10)
