This page provides the complete Discovery F429ZI Pinout diagrams for the STM32F429I-DISC1 Discovery development board. The Discovery F429ZI is based on the STM32F429ZIT6 microcontroller running at up to 180 MHz with 2MB flash and 256KB RAM. Unlike the Nucleo-F429ZI, the Discovery board has many pins consumed by onboard peripherals including the LCD controller, SDRAM, and touchscreen interface, leaving a limited number of freely available GPIO pins.
To view pin labels in detail, right-click any image and select Open image in new tab, then use Ctrl+Scroll to zoom.
Pinout Legend

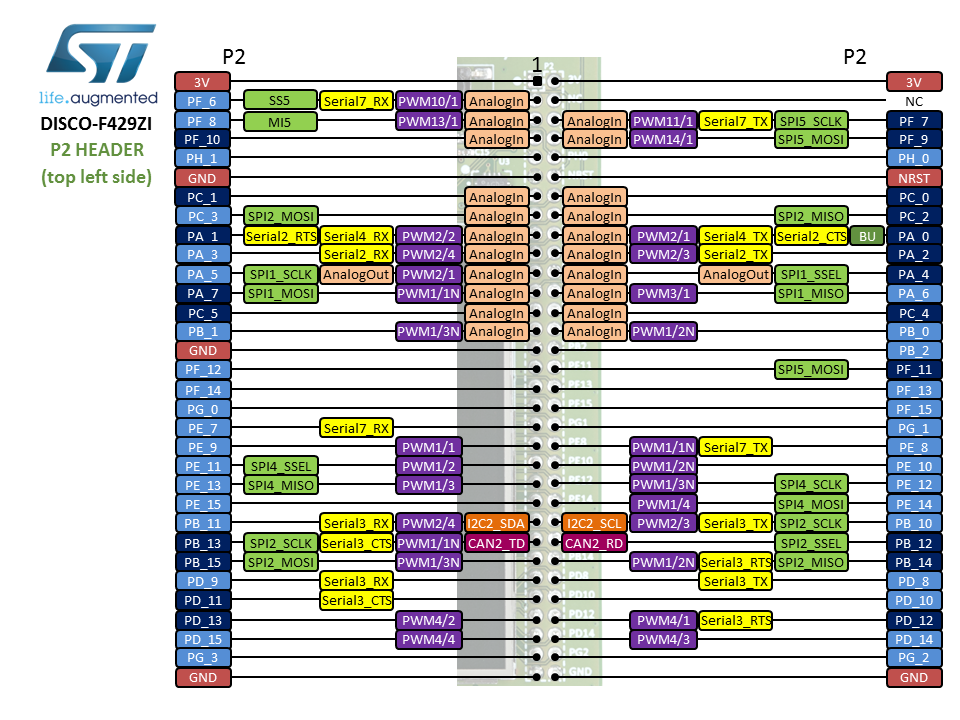

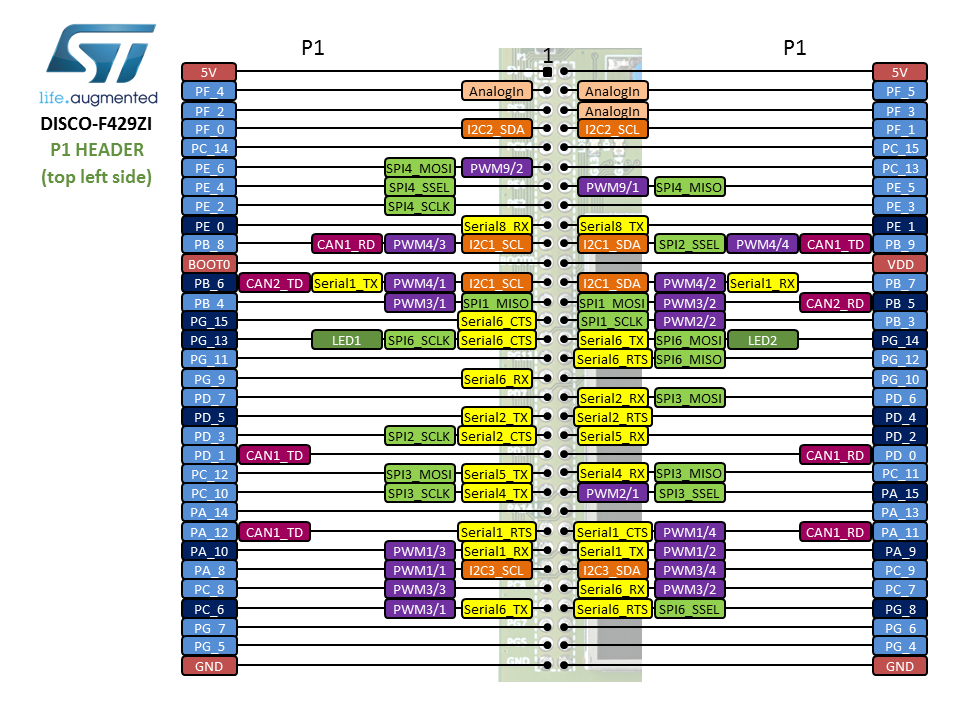

Board Pinout
