Introduction
In this tutorial we shall dive into how to build your own STM32CubeIDE Toolchain for your development environment. In our particular case we needed to be able to debug LibC code because we were seeing anomalies or behavior that was not what we expected. The default CubeIDE Toolchain provided containing the LibC library did not have the debug options needed to be able to follow the internal code. In fact things are by default optimized for performance and code size.
Cloning the toolchain github repo gives us the ability to build our own toolchain, however, the default debug build options still don’t provide full debugging capabilities, as the debug build option provides for only a -O2 and -Os instead of a full -Og debug build.
We therefore, modified the build script to allow us to have a better debugging experience. Before-hand, many parts of the code and variables were optimized out, and you could not step through code. Modifying the build scripts allowed us full debugging capabilities.
Cloning the Repo
The following link GNU Tools for STM32 is where you can acquire the source code needed to setup your own tool chain.
Bash
git clone https://github.com/STMicroelectronics/gnu-tools-for-stm32.gitThe following lines 137,336,378,505 have been highlighted to indicate which optimization parameters should be changed from either -O2 or -Os to -Og
******Note: Make sure to change all of them to be -Og
Bash
#! /usr/bin/env bash
# Copyright (c) 2011-2020, ARM Limited
# All rights reserved.
#
# Redistribution and use in source and binary forms, with or without
# modification, are permitted provided that the following conditions are met:
#
# * Redistributions of source code must retain the above copyright notice,
# this list of conditions and the following disclaimer.
# * Redistributions in binary form must reproduce the above copyright
# notice, this list of conditions and the following disclaimer in the
# documentation and/or other materials provided with the distribution.
# * Neither the name of Arm nor the names of its contributors may be used
# to endorse or promote products derived from this software without
# specific prior written permission.
#
# THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
# AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
# IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
# ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE
# LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
# CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
# SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
# INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
# CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
# ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
# POSSIBILITY OF SUCH DAMAGE.
set -e
set -x
set -u
set -o pipefail
PS4='+$(date -u +%Y-%m-%d:%H:%M:%S) (${BASH_SOURCE}:${LINENO}): ${FUNCNAME[0]:+${FUNCNAME[0]}(): }'
umask 022
exec < /dev/null
script_path=$(cd $(dirname $0) && pwd -P)
. $script_path/build-common.sh
# This file contains the sequence of commands used to build the
# GNU Tools Arm Embedded toolchain.
usage ()
{
cat<<EOF
Usage: $0 [--build_type=...] [--skip_steps=...]
This script will build GNU Tools Arm Embedded toolchain.
OPTIONS:
--build_type=TYPE specify build type to either ppa or native.
If followed by keyword debug, the produced binaries
will be debuggable. The default case will be
non-debug native build.
Example usages are as:
--build_type=native
--build_type=ppa
--build_type=native,debug
--build_type=ppa,debug
--with-multilib-list specify list of multilibs included with the build.
For example:
--with-multilib-list=rmprofile
--with-multilib-list=rmprofile,aprofile (Default value)
--skip_steps=STEPS specify which build steps you want to skip. Concatenate
them with comma for skipping more than one steps.
Available steps are:
gdb-with-python
manual
md5_checksum
mingw[32]
mingw[32]-gdb-with-python
native
package_bins
package_sources
strip
EOF
}
if [ $# -gt 3 ] ; then
usage
fi
skip_mingw32=no
BUILD_OPTIONS="-g -O2"
is_ppa_release=no
is_native_build=yes
is_debug_build=no
skip_manual=no
skip_package_bins=no
skip_package_sources=no
skip_md5_checksum=no
skip_steps=
skip_gdb_with_python=yes
skip_mingw32_gdb_with_python=yes
skip_native_build=no
skip_strip_target_libraries=no
build_type=
MULTILIB_LIST="--with-multilib-list=rmprofile,aprofile"
for ac_arg; do
case $ac_arg in
--skip_steps=*)
skip_steps=$(echo $ac_arg | sed -e "s/--skip_steps=//g" -e "s/,/ /g")
;;
--build_type=*)
build_type=$(echo $ac_arg | sed -e "s/--build_type=//g" -e "s/,/ /g")
;;
--with-multilib-list=*)
MULTILIB_LIST="--with-multilib-list=${ac_arg##*=}"
;;
*)
usage
exit 1
;;
esac
done
if [ "x$build_type" != "x" ]; then
for bt in $build_type; do
case $bt in
ppa)
is_ppa_release=yes
is_native_build=no
skip_gdb_with_python=yes
;;
native)
is_native_build=yes
is_ppa_release=no
;;
debug)
BUILD_OPTIONS="-g -Og"
is_debug_build=yes
;;
*)
echo "Unknown build type: $bt" 1>&2
usage
exit 1
;;
esac
done
else
is_ppa_release=no
is_native_build=yes
fi
if [ "x$skip_steps" != "x" ]; then
for ss in $skip_steps; do
case $ss in
manual)
skip_manual=yes
;;
package_bins)
skip_package_bins=yes
;;
package_sources)
skip_package_sources=yes
;;
md5_checksum)
skip_md5_checksum=yes
;;
gdb-with-python)
skip_gdb_with_python=yes
;;
mingw|mingw32)
skip_mingw32=yes
skip_mingw32_gdb_with_python=yes
;;
mingw-gdb-with-python|mingw32-gdb-with-python)
skip_mingw32_gdb_with_python=yes
;;
native)
skip_native_build=yes
;;
strip)
skip_strip_target_libraries=yes
;;
*)
echo "Unknown build steps: $ss" 1>&2
usage
exit 1
;;
esac
done
fi
if dpkg-query -W lbzip2 > /dev/null 2>&1; then
echo "Using multi-threaded bzip2 compression"
TAR_FLAGS="--use-compress-program=lbzip2"
fi
if [ "x$BUILD" == "xx86_64-apple-darwin10" ] || [ "x$is_ppa_release" == "xyes" ]; then
skip_mingw32=yes
skip_mingw32_gdb_with_python=yes
BUILD_OPTIONS="$BUILD_OPTIONS -fbracket-depth=512"
fi
#Building mingw gdb with python support requires python windows package and
#a special config file. If any of them is missing, we skip the build of
#mingw gdb with python support.
if [ ! -d $SRCDIR/$PYTHON_WIN ] \
|| [ ! -x $script_path/python-config.sh ]; then
skip_mingw32_gdb_with_python=yes
fi
if [ "x$is_ppa_release" != "xyes" ]; then
ENV_CFLAGS=" -I$BUILDDIR_NATIVE/host-libs/zlib/include $BUILD_OPTIONS "
ENV_CPPFLAGS=" -I$BUILDDIR_NATIVE/host-libs/zlib/include "
ENV_LDFLAGS=" -L$BUILDDIR_NATIVE/host-libs/zlib/lib
-L$BUILDDIR_NATIVE/host-libs/usr/lib "
GCC_CONFIG_OPTS=" --build=$BUILD --host=$HOST_NATIVE
--with-gmp=$BUILDDIR_NATIVE/host-libs/usr
--with-mpfr=$BUILDDIR_NATIVE/host-libs/usr
--with-mpc=$BUILDDIR_NATIVE/host-libs/usr
--with-isl=$BUILDDIR_NATIVE/host-libs/usr "
BINUTILS_CONFIG_OPTS=" --build=$BUILD --host=$HOST_NATIVE "
NEWLIB_CONFIG_OPTS=" --build=$BUILD --host=$HOST_NATIVE "
GDB_CONFIG_OPTS=" --build=$BUILD --host=$HOST_NATIVE
--with-libgmp-prefix=$BUILDDIR_NATIVE/host-libs/usr \
--with-libexpat-prefix=$BUILDDIR_NATIVE/host-libs/usr "
fi
if [ "x$skip_native_build" != "xyes" ] ; then
mkdir -p $BUILDDIR_NATIVE
rm -rf $INSTALLDIR_NATIVE && mkdir -p $INSTALLDIR_NATIVE
rm -rf $PACKAGEDIR && mkdir -p $PACKAGEDIR
fi
if [ "x$skip_mingw32" != "xyes" ] ; then
mkdir -p $BUILDDIR_MINGW
rm -rf $INSTALLDIR_MINGW && mkdir -p $INSTALLDIR_MINGW
fi
cd $SRCDIR
if [ "x$skip_native_build" != "xyes" ] ; then
echo Task [III-0] /$HOST_NATIVE/binutils/ | tee -a "$BUILDDIR_NATIVE/.stage"
rm -rf $BUILDDIR_NATIVE/binutils && mkdir -p $BUILDDIR_NATIVE/binutils
pushd $BUILDDIR_NATIVE/binutils
saveenv
saveenvvar CFLAGS "$ENV_CFLAGS"
saveenvvar CPPFLAGS "$ENV_CPPFLAGS"
saveenvvar LDFLAGS "$ENV_LDFLAGS"
$SRCDIR/$BINUTILS/configure \
${BINUTILS_CONFIG_OPTS} \
--target=$TARGET \
--prefix=$INSTALLDIR_NATIVE \
--infodir=$INSTALLDIR_NATIVE_DOC/info \
--mandir=$INSTALLDIR_NATIVE_DOC/man \
--htmldir=$INSTALLDIR_NATIVE_DOC/html \
--pdfdir=$INSTALLDIR_NATIVE_DOC/pdf \
--disable-nls \
--disable-werror \
--disable-sim \
--disable-gdb \
--enable-interwork \
--enable-plugins \
--with-sysroot=$INSTALLDIR_NATIVE/arm-none-eabi \
--with-zstd=no \
"--with-pkgversion=$PKGVERSION"
make -j$JOBS
make install
if [ "x$skip_manual" != "xyes" ]; then
make install-html install-pdf
fi
copy_dir $INSTALLDIR_NATIVE $BUILDDIR_NATIVE/target-libs
restoreenv
popd
pushd $INSTALLDIR_NATIVE
rm -rf ./lib
popd
echo Task [III-1] /$HOST_NATIVE/gcc-first/ | tee -a "$BUILDDIR_NATIVE/.stage"
rm -rf $BUILDDIR_NATIVE/gcc-first && mkdir -p $BUILDDIR_NATIVE/gcc-first
pushd $BUILDDIR_NATIVE/gcc-first
$SRCDIR/$GCC/configure --target=$TARGET \
--prefix=$INSTALLDIR_NATIVE \
--libexecdir=$INSTALLDIR_NATIVE/lib \
--infodir=$INSTALLDIR_NATIVE_DOC/info \
--mandir=$INSTALLDIR_NATIVE_DOC/man \
--htmldir=$INSTALLDIR_NATIVE_DOC/html \
--pdfdir=$INSTALLDIR_NATIVE_DOC/pdf \
--enable-languages=c \
--disable-decimal-float \
--disable-libffi \
--disable-libgomp \
--disable-libmudflap \
--disable-libquadmath \
--disable-libssp \
--disable-libstdcxx-pch \
--disable-nls \
--disable-shared \
--disable-threads \
--disable-tls \
--with-newlib \
--without-headers \
--with-gnu-as \
--with-gnu-ld \
--with-python-dir=share/gcc-arm-none-eabi \
--with-sysroot=$INSTALLDIR_NATIVE/arm-none-eabi \
--with-zstd=no \
${GCC_CONFIG_OPTS} \
"${GCC_CONFIG_OPTS_LCPP}" \
"--with-pkgversion=$PKGVERSION" \
${MULTILIB_LIST}
make -j$JOBS CXXFLAGS="$BUILD_OPTIONS" all-gcc
make install-gcc
popd
pushd $INSTALLDIR_NATIVE
rm -rf bin/arm-none-eabi-gccbug
rm -rf ./lib/libiberty.a
rm -rf include
popd
echo Task [III-2] /$HOST_NATIVE/newlib/ | tee -a "$BUILDDIR_NATIVE/.stage"
saveenv
prepend_path PATH $INSTALLDIR_NATIVE/bin
saveenvvar CFLAGS_FOR_TARGET '-g -Os -ffunction-sections -fdata-sections -fno-unroll-loops -DPREFER_SIZE_OVER_SPEED -D__OPTIMIZE_SIZE__ -DSMALL_MEMORY'
rm -rf $BUILDDIR_NATIVE/newlib && mkdir -p $BUILDDIR_NATIVE/newlib
pushd $BUILDDIR_NATIVE/newlib
$SRCDIR/$NEWLIB/configure \
$NEWLIB_CONFIG_OPTS \
--target=$TARGET \
--prefix=$INSTALLDIR_NATIVE \
--infodir=$INSTALLDIR_NATIVE_DOC/info \
--mandir=$INSTALLDIR_NATIVE_DOC/man \
--htmldir=$INSTALLDIR_NATIVE_DOC/html \
--pdfdir=$INSTALLDIR_NATIVE_DOC/pdf \
--enable-newlib-io-long-long \
--enable-newlib-io-c99-formats \
--enable-newlib-reent-check-verify \
--enable-newlib-register-fini \
--enable-newlib-retargetable-locking \
--disable-newlib-supplied-syscalls \
--disable-nls
make -j$JOBS
make install
if [ "x$skip_manual" != "xyes" ]; then
make pdf
mkdir -p $INSTALLDIR_NATIVE_DOC/pdf
cp $BUILDDIR_NATIVE/newlib/arm-none-eabi/newlib/libc/libc.pdf $INSTALLDIR_NATIVE_DOC/pdf/libc.pdf
cp $BUILDDIR_NATIVE/newlib/arm-none-eabi/newlib/libm/libm.pdf $INSTALLDIR_NATIVE_DOC/pdf/libm.pdf
make html
mkdir -p $INSTALLDIR_NATIVE_DOC/html
copy_dir $BUILDDIR_NATIVE/newlib/arm-none-eabi/newlib/libc/libc.html $INSTALLDIR_NATIVE_DOC/html/libc
copy_dir $BUILDDIR_NATIVE/newlib/arm-none-eabi/newlib/libm/libm.html $INSTALLDIR_NATIVE_DOC/html/libm
fi
popd
restoreenv
echo Task [III-3] /$HOST_NATIVE/newlib-nano/ | tee -a "$BUILDDIR_NATIVE/.stage"
saveenv
prepend_path PATH $INSTALLDIR_NATIVE/bin
saveenvvar CFLAGS_FOR_TARGET '-g -Os -ffunction-sections -fdata-sections -fno-unroll-loops -DPREFER_SIZE_OVER_SPEED -D__OPTIMIZE_SIZE__ -DSMALL_MEMORY'
rm -rf $BUILDDIR_NATIVE/newlib-nano && mkdir -p $BUILDDIR_NATIVE/newlib-nano
pushd $BUILDDIR_NATIVE/newlib-nano
$SRCDIR/$NEWLIB_NANO/configure \
$NEWLIB_CONFIG_OPTS \
--target=$TARGET \
--prefix=$BUILDDIR_NATIVE/target-libs \
--disable-newlib-supplied-syscalls \
--enable-newlib-reent-check-verify \
--enable-newlib-reent-small \
--enable-newlib-retargetable-locking \
--disable-newlib-fvwrite-in-streamio \
--disable-newlib-fseek-optimization \
--disable-newlib-wide-orient \
--enable-newlib-nano-malloc \
--disable-newlib-unbuf-stream-opt \
--enable-lite-exit \
--enable-newlib-global-atexit \
--enable-newlib-nano-formatted-io \
--disable-nls
make -j$JOBS
make install
popd
restoreenv
echo Task [III-4] /$HOST_NATIVE/gcc-final/ | tee -a "$BUILDDIR_NATIVE/.stage"
rm -f $INSTALLDIR_NATIVE/arm-none-eabi/usr
ln -s . $INSTALLDIR_NATIVE/arm-none-eabi/usr
rm -rf $BUILDDIR_NATIVE/gcc-final && mkdir -p $BUILDDIR_NATIVE/gcc-final
pushd $BUILDDIR_NATIVE/gcc-final
$SRCDIR/$GCC/configure --target=$TARGET \
--prefix=$INSTALLDIR_NATIVE \
--libexecdir=$INSTALLDIR_NATIVE/lib \
--infodir=$INSTALLDIR_NATIVE_DOC/info \
--mandir=$INSTALLDIR_NATIVE_DOC/man \
--htmldir=$INSTALLDIR_NATIVE_DOC/html \
--pdfdir=$INSTALLDIR_NATIVE_DOC/pdf \
--enable-languages=c,c++ \
--enable-plugins \
--disable-decimal-float \
--disable-libffi \
--disable-libgomp \
--disable-libmudflap \
--disable-libquadmath \
--disable-libssp \
--disable-libstdcxx-pch \
--disable-nls \
--disable-shared \
--disable-threads \
--disable-tls \
--with-gnu-as \
--with-gnu-ld \
--with-newlib \
--with-headers=yes \
--with-python-dir=share/gcc-arm-none-eabi \
--with-sysroot=$INSTALLDIR_NATIVE/arm-none-eabi \
--with-zstd=no \
$GCC_CONFIG_OPTS \
"${GCC_CONFIG_OPTS_LCPP}" \
"--with-pkgversion=$PKGVERSION" \
${MULTILIB_LIST}
# Passing USE_TM_CLONE_REGISTRY=0 via INHIBIT_LIBC_CFLAGS to disable
# transactional memory related code in crtbegin.o.
# This is a workaround. Better approach is have a t-* to set this flag via
# CRTSTUFF_T_CFLAGS
make -j$JOBS CXXFLAGS="$BUILD_OPTIONS" \
INHIBIT_LIBC_CFLAGS="-DUSE_TM_CLONE_REGISTRY=0"
make install
if [ "x$skip_manual" != "xyes" ]; then
make install-html install-pdf
fi
pushd $INSTALLDIR_NATIVE
rm -rf bin/arm-none-eabi-gccbug
LIBIBERTY_LIBRARIES=$(find $INSTALLDIR_NATIVE/arm-none-eabi/lib -name libiberty.a)
for libiberty_lib in $LIBIBERTY_LIBRARIES ; do
rm -rf $libiberty_lib
done
rm -rf ./lib/libiberty.a
rm -rf include
popd
rm -f $INSTALLDIR_NATIVE/arm-none-eabi/usr
popd
echo Task [III-5] /$HOST_NATIVE/gcc-size-libstdcxx/ | tee -a "$BUILDDIR_NATIVE/.stage"
rm -f $BUILDDIR_NATIVE/target-libs/arm-none-eabi/usr
ln -s . $BUILDDIR_NATIVE/target-libs/arm-none-eabi/usr
rm -rf $BUILDDIR_NATIVE/gcc-size-libstdcxx && mkdir -p $BUILDDIR_NATIVE/gcc-size-libstdcxx
pushd $BUILDDIR_NATIVE/gcc-size-libstdcxx
$SRCDIR/$GCC/configure --target=$TARGET \
--prefix=$BUILDDIR_NATIVE/target-libs \
--enable-languages=c,c++ \
--disable-decimal-float \
--disable-libffi \
--disable-libgomp \
--disable-libmudflap \
--disable-libquadmath \
--disable-libssp \
--disable-libstdcxx-pch \
--disable-libstdcxx-verbose \
--disable-nls \
--disable-shared \
--disable-threads \
--disable-tls \
--with-gnu-as \
--with-gnu-ld \
--with-newlib \
--with-headers=yes \
--with-python-dir=share/gcc-arm-none-eabi \
--with-sysroot=$BUILDDIR_NATIVE/target-libs/arm-none-eabi \
--with-zstd=no \
$GCC_CONFIG_OPTS \
"${GCC_CONFIG_OPTS_LCPP}" \
"--with-pkgversion=$PKGVERSION" \
${MULTILIB_LIST}
make -j$JOBS CCXXFLAGS="$BUILD_OPTIONS" CXXFLAGS_FOR_TARGET="-g -Os -ffunction-sections -fdata-sections -fno-exceptions"
make install
copy_multi_libs src_prefix="$BUILDDIR_NATIVE/target-libs/arm-none-eabi/lib" \
dst_prefix="$INSTALLDIR_NATIVE/arm-none-eabi/lib" \
target_gcc="$BUILDDIR_NATIVE/target-libs/bin/arm-none-eabi-gcc"
# Copy the nano configured newlib.h file into the location that nano.specs
# expects it to be.
mkdir -p $INSTALLDIR_NATIVE/arm-none-eabi/include/newlib-nano
cp -f $BUILDDIR_NATIVE/target-libs/arm-none-eabi/include/newlib.h \
$INSTALLDIR_NATIVE/arm-none-eabi/include/newlib-nano/newlib.h
popd
echo Task [III-6] /$HOST_NATIVE/gdb/ | tee -a "$BUILDDIR_NATIVE/.stage"
build_gdb()
{
GDB_EXTRA_CONFIG_OPTS=$1
rm -rf $BUILDDIR_NATIVE/gdb && mkdir -p $BUILDDIR_NATIVE/gdb
pushd $BUILDDIR_NATIVE/gdb
saveenv
saveenvvar CFLAGS "$ENV_CFLAGS"
saveenvvar CPPFLAGS "$ENV_CPPFLAGS"
saveenvvar LDFLAGS "$ENV_LDFLAGS"
$SRCDIR/$GDB/configure \
--target=$TARGET \
--prefix=$INSTALLDIR_NATIVE \
--infodir=$INSTALLDIR_NATIVE_DOC/info \
--mandir=$INSTALLDIR_NATIVE_DOC/man \
--htmldir=$INSTALLDIR_NATIVE_DOC/html \
--pdfdir=$INSTALLDIR_NATIVE_DOC/pdf \
--disable-nls \
--disable-sim \
--disable-gas \
--disable-binutils \
--disable-ld \
--disable-gprof \
--with-libexpat \
--with-lzma=no \
--with-system-gdbinit=$INSTALLDIR_NATIVE/$HOST_NATIVE/arm-none-eabi/lib/gdbinit \
--with-zstd=no \
$GDB_CONFIG_OPTS \
$GDB_EXTRA_CONFIG_OPTS \
'--with-gdb-datadir='\''${prefix}'\''/arm-none-eabi/share/gdb' \
"--with-pkgversion=$PKGVERSION"
make -j$JOBS
make install
if [ "x$skip_manual" != "xyes" ]; then
make install-html install-pdf
rm -v $INSTALLDIR_NATIVE_DOC/html/gdb/qMemTags.html
fi
restoreenv
popd
}
#Always enable python support in GDB for PPA build.
if [ "x$is_ppa_release" == "xyes" ]; then
build_gdb "--with-python=python3"
else
#First we build GDB without python support.
build_gdb "--with-python=no"
#Then build gdb with python support.
if [ "x$skip_gdb_with_python" == "xno" ]; then
build_gdb "--with-python=python3 --program-prefix=$TARGET- --program-suffix=-py"
fi
fi
echo Task [III-8] /$HOST_NATIVE/pretidy/ | tee -a "$BUILDDIR_NATIVE/.stage"
rm -rf $INSTALLDIR_NATIVE/lib/libiberty.a
find $INSTALLDIR_NATIVE -name '*.la' -exec rm '{}' ';'
echo Task [III-9] /$HOST_NATIVE/strip_host_objects/ | tee -a "$BUILDDIR_NATIVE/.stage"
if [ "x$is_debug_build" == "xno" ] ; then
STRIP_BINARIES=$(find $INSTALLDIR_NATIVE/bin/ -name arm-none-eabi-\*)
for bin in $STRIP_BINARIES ; do
strip_binary strip $bin
done
STRIP_BINARIES=$(find $INSTALLDIR_NATIVE/arm-none-eabi/bin/ -maxdepth 1 -mindepth 1 -name \*)
for bin in $STRIP_BINARIES ; do
strip_binary strip $bin
done
if [ "x$BUILD" == "xx86_64-apple-darwin10" ]; then
STRIP_BINARIES=$(find $INSTALLDIR_NATIVE/lib/gcc/arm-none-eabi/$GCC_VER/ -maxdepth 1 -name \* -perm +111 -and ! -type d)
else
STRIP_BINARIES=$(find $INSTALLDIR_NATIVE/lib/gcc/arm-none-eabi/$GCC_VER/ -maxdepth 1 -name \* -perm /111 -and ! -type d)
fi
for bin in $STRIP_BINARIES ; do
strip_binary strip $bin
done
fi
echo Task [III-10] /$HOST_NATIVE/strip_target_objects/ | tee -a "$BUILDDIR_NATIVE/.stage"
saveenv
prepend_path PATH $INSTALLDIR_NATIVE/bin
if [ "x$skip_strip_target_libraries" == "xno" ] ; then
TARGET_LIBRARIES=$(find $INSTALLDIR_NATIVE/arm-none-eabi/lib -name libg.a -or -name libg_nano.a)
for target_lib in $TARGET_LIBRARIES ; do
break_hardlink "$target_lib"
done
TARGET_LIBRARIES=$(find $INSTALLDIR_NATIVE/arm-none-eabi/lib -name \*.a ! -name libg.a ! -name libg_nano.a)
for target_lib in $TARGET_LIBRARIES ; do
arm-none-eabi-strip --remove-section=.comment --remove-section=.note --strip-debug --enable-deterministic-archives --keep-section=.debug_frame $target_lib || true
done
TARGET_OBJECTS=$(find $INSTALLDIR_NATIVE/arm-none-eabi/lib -name \*.o)
for target_obj in $TARGET_OBJECTS ; do
arm-none-eabi-strip --remove-section=.comment --remove-section=.note --strip-debug --enable-deterministic-archives --keep-section=.debug_frame $target_obj || true
done
TARGET_LIBRARIES=$(find $INSTALLDIR_NATIVE/lib/gcc/arm-none-eabi/$GCC_VER -name \*.a)
for target_lib in $TARGET_LIBRARIES ; do
arm-none-eabi-strip --remove-section=.comment --remove-section=.note --strip-debug --enable-deterministic-archives --keep-section=.debug_frame $target_lib || true
done
TARGET_OBJECTS=$(find $INSTALLDIR_NATIVE/lib/gcc/arm-none-eabi/$GCC_VER -name \*.o)
for target_obj in $TARGET_OBJECTS ; do
arm-none-eabi-strip --remove-section=.comment --remove-section=.note --strip-debug --enable-deterministic-archives --keep-section=.debug_frame $target_obj || true
done
fi
restoreenv
echo Task [III-11] /$HOST_NATIVE/specs/ | tee -a "$BUILDDIR_NATIVE/.stage"
pushd $BUILDDIR_NATIVE
$INSTALLDIR_NATIVE/bin/arm-none-eabi-gcc -print-multi-lib | cut -d';' -f 1 | while read dir; do
cp -v $SRCDIR/specs/{nano_c_standard_cpp,standard_c_nano_cpp}.specs $INSTALLDIR_NATIVE/arm-none-eabi/lib/$dir/
done
popd
# PPA release needn't following steps, so we exit here.
if [ "x$is_ppa_release" == "xyes" ] ; then
exit 0
fi
echo Task [III-12] /$HOST_NATIVE/package_tbz2/ | tee -a "$BUILDDIR_NATIVE/.stage"
# Copy release.txt into share.
cp $ROOT/$LICENSE_FILE $INSTALLDIR_NATIVE_DOC/
# Cleanup any pre-existing state.
rm -f $PACKAGEDIR/$PACKAGE_NAME_NATIVE.tar.bz2
rm -f $BUILDDIR_NATIVE/$INSTALL_PACKAGE_NAME
# Start making the package.
pushd $BUILDDIR_NATIVE
ln -s $INSTALLDIR_NATIVE $INSTALL_PACKAGE_NAME
# Make the package tarball.
${TAR} cjf $PACKAGEDIR/$PACKAGE_NAME_NATIVE.tar.bz2 \
--exclude=host-$HOST_NATIVE \
--exclude=host-$HOST_MINGW \
$INSTALL_PACKAGE_NAME/arm-none-eabi \
$INSTALL_PACKAGE_NAME/bin \
$INSTALL_PACKAGE_NAME/lib \
$INSTALL_PACKAGE_NAME/share
# Remove stale links.
rm -f $INSTALL_PACKAGE_NAME
popd
if [ "x$skip_package_bins" != "xyes" ]; then
echo Task [III-13] /Package toolchain in ST version/
pushd $ROOT
time ${TAR} czf $PACKAGEDIR/${PACKAGE_NAME_NATIVE}-build.tar.gz --owner=0 --group=0 build-native/
time ${TAR} czf $PACKAGEDIR/${PACKAGE_NAME_NATIVE}-install.tar.gz --owner=0 --group=0 install-native/
popd
fi
# Validate binaries on macos
if [ "x$BUILD" == "xx86_64-apple-darwin10" ]; then
echo Task [III-14] /Validate tool dependencies/
invalid=()
while read line; do
if objdump -macho --dylibs-used "$line" | grep -q '/usr/local/'; then
invalid+=($line)
fi
done <<< $(find $INSTALLDIR_NATIVE/ -type f | xargs file | grep "Mach-O " | cut -d: -f1)
if [ ${#invalid[@]} -ne 0 ]; then
echo -e "Illegal dependency detected!${invalid[@]/#/\\n}\nAborting..."
exit 1
fi
fi
fi #if [ "x$skip_native_build" != "xyes" ] ; then
# skip building mingw32 toolchain if "--skip_mingw32" specified
# this huge if statement controls all $BUILDDIR_MINGW tasks till "task [IV-8]"
if [ "x$skip_mingw32" != "xyes" ] ; then
saveenv
saveenvvar CC_FOR_BUILD gcc
saveenvvar CC $HOST_MINGW_TOOL-gcc
saveenvvar CXX $HOST_MINGW_TOOL-g++
saveenvvar AR $HOST_MINGW_TOOL-ar
saveenvvar RANLIB $HOST_MINGW_TOOL-ranlib
saveenvvar STRIP $HOST_MINGW_TOOL-strip
saveenvvar NM $HOST_MINGW_TOOL-nm
echo Task [IV-0] /$HOST_MINGW/host_unpack/ | tee -a "$BUILDDIR_MINGW/.stage"
rm -rf $BUILDDIR_MINGW/tools-$OBJ_SUFFIX_NATIVE && mkdir $BUILDDIR_MINGW/tools-$OBJ_SUFFIX_NATIVE
pushd $BUILDDIR_MINGW/tools-$OBJ_SUFFIX_NATIVE
ln -s . $INSTALL_PACKAGE_NAME
tar xf $PACKAGEDIR/$PACKAGE_NAME_NATIVE.tar.bz2 ${TAR_FLAGS:-}
rm $INSTALL_PACKAGE_NAME
popd
echo Task [IV-1] /$HOST_MINGW/binutils/ | tee -a "$BUILDDIR_MINGW/.stage"
prepend_path PATH $BUILDDIR_MINGW/tools-$OBJ_SUFFIX_NATIVE/bin
rm -rf $BUILDDIR_MINGW/binutils && mkdir -p $BUILDDIR_MINGW/binutils
pushd $BUILDDIR_MINGW/binutils
saveenv
saveenvvar CFLAGS "-I$BUILDDIR_MINGW/host-libs/zlib/include -I$BUILDDIR_MINGW/host-libs/usr/include $BUILD_OPTIONS"
saveenvvar CPPFLAGS "-I$BUILDDIR_MINGW/host-libs/zlib/include -I$BUILDDIR_MINGW/host-libs/usr/include"
saveenvvar LDFLAGS "-L$BUILDDIR_MINGW/host-libs/zlib/lib -L$BUILDDIR_MINGW/host-libs/usr/lib -Wl,/usr/$HOST_MINGW/lib/CRT_glob.o"
saveenvvar LDFLAGS_WRAP_FILEIO "@$BUILDDIR_MINGW/liblongpath-win32/gcc/exe.inputs"
saveenvvar LDFLAGS_DLLWRAP_FILEIO "@$BUILDDIR_MINGW/liblongpath-win32/gcc/dll.inputs"
$SRCDIR/$BINUTILS/configure --build=$BUILD \
--host=$HOST_MINGW \
--target=$TARGET \
--prefix=$INSTALLDIR_MINGW \
--infodir=$INSTALLDIR_MINGW_DOC/info \
--mandir=$INSTALLDIR_MINGW_DOC/man \
--htmldir=$INSTALLDIR_MINGW_DOC/html \
--pdfdir=$INSTALLDIR_MINGW_DOC/pdf \
--disable-nls \
--disable-sim \
--disable-gdb \
--enable-plugins \
--with-sysroot=$INSTALLDIR_MINGW/arm-none-eabi \
"--with-pkgversion=$PKGVERSION"
make -j$JOBS
make install
if [ "x$skip_manual" != "xyes" ]; then
make install-html install-pdf
fi
restoreenv
popd
pushd $INSTALLDIR_MINGW
rm -rf ./lib
popd
echo Task [IV-2] /$HOST_MINGW/copy_libs/ | tee -a "$BUILDDIR_MINGW/.stage"
if [ "x$skip_manual" != "xyes" ]; then
copy_dir $BUILDDIR_MINGW/tools-$OBJ_SUFFIX_NATIVE/share/doc/gcc-arm-none-eabi/html $INSTALLDIR_MINGW_DOC/html
copy_dir $BUILDDIR_MINGW/tools-$OBJ_SUFFIX_NATIVE/share/doc/gcc-arm-none-eabi/pdf $INSTALLDIR_MINGW_DOC/pdf
fi
copy_dir $BUILDDIR_MINGW/tools-$OBJ_SUFFIX_NATIVE/arm-none-eabi/lib $INSTALLDIR_MINGW/arm-none-eabi/lib
copy_dir $BUILDDIR_MINGW/tools-$OBJ_SUFFIX_NATIVE/arm-none-eabi/include $INSTALLDIR_MINGW/arm-none-eabi/include
copy_dir $BUILDDIR_MINGW/tools-$OBJ_SUFFIX_NATIVE/arm-none-eabi/include/c++ $INSTALLDIR_MINGW/arm-none-eabi/include/c++
copy_dir $BUILDDIR_MINGW/tools-$OBJ_SUFFIX_NATIVE/lib/gcc/arm-none-eabi $INSTALLDIR_MINGW/lib/gcc/arm-none-eabi
echo Task [IV-3] /$HOST_MINGW/gcc-final/ | tee -a "$BUILDDIR_MINGW/.stage"
saveenv
saveenvvar AR_FOR_TARGET $TARGET-ar
saveenvvar NM_FOR_TARGET $TARGET-nm
saveenvvar OBJDUMP_FOR_TARET $TARGET-objdump
saveenvvar STRIP_FOR_TARGET $TARGET-strip
saveenvvar CC_FOR_TARGET $TARGET-gcc
saveenvvar GCC_FOR_TARGET $TARGET-gcc
saveenvvar CXX_FOR_TARGET $TARGET-g++
saveenvvar LDFLAGS_WRAP_FILEIO "@$BUILDDIR_MINGW/liblongpath-win32/gcc/exe.inputs"
saveenvvar LDFLAGS_DLLWRAP_FILEIO "@$BUILDDIR_MINGW/liblongpath-win32/gcc/dll.inputs"
pushd $INSTALLDIR_MINGW/arm-none-eabi/
rm -f usr
ln -s . usr
popd
rm -rf $BUILDDIR_MINGW/gcc && mkdir -p $BUILDDIR_MINGW/gcc
pushd $BUILDDIR_MINGW/gcc
saveenvvar CFLAGS "$BUILD_OPTIONS"
$SRCDIR/$GCC/configure --build=$BUILD --host=$HOST_MINGW --target=$TARGET \
--prefix=$INSTALLDIR_MINGW \
--libexecdir=$INSTALLDIR_MINGW/lib \
--infodir=$INSTALLDIR_MINGW_DOC/info \
--mandir=$INSTALLDIR_MINGW_DOC/man \
--htmldir=$INSTALLDIR_MINGW_DOC/html \
--pdfdir=$INSTALLDIR_MINGW_DOC/pdf \
--enable-languages=c,c++ \
--enable-mingw-wildcard \
--disable-decimal-float \
--disable-libffi \
--disable-libgomp \
--disable-libmudflap \
--disable-libquadmath \
--disable-libssp \
--disable-libstdcxx-pch \
--disable-nls \
--disable-shared \
--disable-threads \
--disable-tls \
--with-gnu-as \
--with-gnu-ld \
--with-headers=yes \
--with-newlib \
--with-python-dir=share/gcc-arm-none-eabi \
--with-sysroot=$INSTALLDIR_MINGW/arm-none-eabi \
--with-libiconv-prefix=$BUILDDIR_MINGW/host-libs/usr \
--with-gmp=$BUILDDIR_MINGW/host-libs/usr \
--with-mpfr=$BUILDDIR_MINGW/host-libs/usr \
--with-mpc=$BUILDDIR_MINGW/host-libs/usr \
--with-isl=$BUILDDIR_MINGW/host-libs/usr \
"--with-host-libstdcxx=-static-libgcc -Wl,-Bstatic,-lstdc++,-Bdynamic -lm" \
"--with-pkgversion=$PKGVERSION" \
${MULTILIB_LIST}
make -j$JOBS all-gcc
make install-gcc
if [ "x$skip_manual" != "xyes" ]; then
make install-html-gcc install-pdf-gcc
fi
popd
pushd $INSTALLDIR_MINGW
rm -rf bin/arm-none-eabi-gccbug
rm -rf include
popd
copy_dir $BUILDDIR_MINGW/tools-$OBJ_SUFFIX_NATIVE/lib/gcc/arm-none-eabi $INSTALLDIR_MINGW/lib/gcc/arm-none-eabi
rm -rf $INSTALLDIR_MINGW/arm-none-eabi/usr
rm -rf $INSTALLDIR_MINGW/lib/gcc/arm-none-eabi/*/plugin
find $INSTALLDIR_MINGW -executable -and -not -type d -and -not -name \*.exe \
-and -not -name liblto_plugin.dll -exec rm -vf \{\} \;
find $INSTALLDIR_MINGW -name 'liblto_plugin.so*' -exec rm -vf \{\} \;
restoreenv
echo Task [IV-4] /$HOST_MINGW/gdb/ | tee -a "$BUILDDIR_MINGW/.stage"
build_mingw_gdb()
{
MINGW_GDB_CONF_OPTS=$1
rm -rf $BUILDDIR_MINGW/gdb && mkdir -p $BUILDDIR_MINGW/gdb
pushd $BUILDDIR_MINGW/gdb
saveenv
saveenvvar CFLAGS "-I$BUILDDIR_MINGW/host-libs/zlib/include $BUILD_OPTIONS"
saveenvvar CPPFLAGS "-I$BUILDDIR_MINGW/host-libs/zlib/include"
saveenvvar LDFLAGS "-L$BUILDDIR_MINGW/host-libs/zlib/lib -Wl,/usr/$HOST_MINGW/lib/CRT_glob.o"
saveenvvar LDFLAGS_WRAP_FILEIO "@$BUILDDIR_MINGW/liblongpath-win32/gcc/exe.inputs"
saveenvvar LDFLAGS_DLLWRAP_FILEIO "@$BUILDDIR_MINGW/liblongpath-win32/gcc/dll.inputs"
$SRCDIR/$GDB/configure --build=$BUILD \
--host=$HOST_MINGW \
--target=$TARGET \
--prefix=$INSTALLDIR_MINGW \
--infodir=$INSTALLDIR_MINGW_DOC/info \
--mandir=$INSTALLDIR_MINGW_DOC/man \
--htmldir=$INSTALLDIR_MINGW_DOC/html \
--pdfdir=$INSTALLDIR_MINGW_DOC/pdf \
--disable-nls \
--disable-sim \
--disable-gas \
--disable-binutils \
--disable-ld \
--disable-gprof \
--with-lzma=no \
$MINGW_GDB_CONF_OPTS \
--with-libexpat \
--with-libexpat-prefix=$BUILDDIR_MINGW/host-libs/usr \
--with-libiconv-prefix=$BUILDDIR_MINGW/host-libs/usr \
--with-libgmp-prefix=$BUILDDIR_MINGW/host-libs/usr \
--with-system-gdbinit=$INSTALLDIR_MINGW/$HOST_MINGW/arm-none-eabi/lib/gdbinit \
'--with-gdb-datadir='\''${prefix}'\''/arm-none-eabi/share/gdb' \
"--with-pkgversion=$PKGVERSION"
make -j$JOBS
make install
if [ "x$skip_manual" != "xyes" ]; then
make install-html install-pdf
rm -v $INSTALLDIR_MINGW_DOC/html/gdb/qMemTags.html
fi
restoreenv
popd
}
build_mingw_gdb_conf_opts="--disable-source-highlight --with-static-standard-libraries"
build_mingw_gdb "--with-python=no $build_mingw_gdb_conf_opts"
if [ "x$skip_mingw32_gdb_with_python" == "xno" ]; then
export GNURM_PYTHON_WIN_DIR=$SRCDIR/$PYTHON_WIN
build_mingw_gdb "--with-python=$script_path/python-config.sh --program-suffix=-py --program-prefix=$TARGET- $build_mingw_gdb_conf_opts"
fi
echo Task [IV-5] /$HOST_MINGW/pretidy/ | tee -a "$BUILDDIR_MINGW/.stage"
pushd $INSTALLDIR_MINGW
rm -rf ./lib/libiberty.a
rm -rf $INSTALLDIR_MINGW_DOC/info
rm -rf $INSTALLDIR_MINGW_DOC/man
find $INSTALLDIR_MINGW -name '*.la' -exec rm '{}' ';'
echo Task [IV-6] /Validate executables/
$SRCDIR/liblongpath-win32/helper.py --validate $INSTALLDIR_MINGW --triplet $HOST_MINGW_TOOL
echo Task [IV-6] /$HOST_MINGW/strip_host_objects/ | tee -a "$BUILDDIR_MINGW/.stage"
STRIP_BINARIES=$(find $INSTALLDIR_MINGW/bin/ -name arm-none-eabi-\*.exe)
if [ "x$is_debug_build" == "xno" ] ; then
for bin in $STRIP_BINARIES ; do
strip_binary $HOST_MINGW_TOOL-strip $bin
done
STRIP_BINARIES=$(find $INSTALLDIR_MINGW/arm-none-eabi/bin/ -maxdepth 1 -mindepth 1 -name \*.exe)
for bin in $STRIP_BINARIES ; do
strip_binary $HOST_MINGW_TOOL-strip $bin
done
STRIP_BINARIES=$(find $INSTALLDIR_MINGW/lib/gcc/arm-none-eabi/$GCC_VER/ -name \*.exe)
for bin in $STRIP_BINARIES ; do
strip_binary $HOST_MINGW_TOOL-strip $bin
done
fi
echo Task [IV-7] /$HOST_MINGW/installation/ | tee -a "$BUILDDIR_MINGW/.stage"
rm -f $PACKAGEDIR/$PACKAGE_NAME_MINGW.exe
pushd $BUILDDIR_MINGW
rm -f $INSTALL_PACKAGE_NAME
cp $ROOT/$LICENSE_FILE $INSTALLDIR_MINGW_DOC/
flip -m -b $INSTALLDIR_MINGW_DOC/$LICENSE_FILE
rm -rf $INSTALLDIR_MINGW/include
popd
restoreenv
echo Task [IV-8] /Package toolchain in zip format/
pushd $(dirname $INSTALLDIR_MINGW)
ln -s $(basename $INSTALLDIR_MINGW) $PACKAGE_NAME
rm -f $PACKAGEDIR/$PACKAGE_NAME_MINGW.zip
zip -r9 $PACKAGEDIR/$PACKAGE_NAME_MINGW.zip $PACKAGE_NAME
rm $PACKAGE_NAME
popd
if [ "x$skip_package_bins" != "xyes" ]; then
echo Task [IV-10] /Package toolchain in ST version/
pushd $ROOT
time ${TAR} czf $PACKAGEDIR/${PACKAGE_NAME_MINGW}-build.tar.gz --owner=0 --group=0 build-mingw/
time ${TAR} czf $PACKAGEDIR/${PACKAGE_NAME_MINGW}-install.tar.gz --owner=0 --group=0 install-mingw/
popd
fi
fi #end of if [ "x$skip_mingw32" != "xyes" ] ;
if [ "x$skip_package_sources" != "xyes" ]; then
echo Task [V-0] /package_sources/
pushd "$PACKAGEDIR"
rm -rf "$PACKAGE_NAME" && mkdir -p "$PACKAGE_NAME/src"
pack_dir_clean "$SRCDIR" "$BINUTILS" "$PACKAGE_NAME/src/$BINUTILS.tar.bz2" \
--exclude="gdb/testsuite/config/qemu.exp" --exclude="sim"
pack_dir_clean "$SRCDIR" "$GCC" "$PACKAGE_NAME/src/$GCC.tar.bz2"
pack_dir_clean "$SRCDIR" "$GDB" "$PACKAGE_NAME/src/$GDB.tar.bz2" \
--exclude="gdb/testsuite/config/qemu.exp" --exclude="sim"
pack_dir_clean "$SRCDIR" "$NEWLIB" "$PACKAGE_NAME/src/$NEWLIB.tar.bz2"
for prereq in $SRC_PREREQS; do
eval prereq_pack="\$${prereq}_PACK"
cp "$SRCDIR/$prereq_pack" "$PACKAGE_NAME/src/"
done
if [ -f "$SRCDIR/source.spc" ]; then
cp "$SRCDIR/source.spc" "$PACKAGE_NAME/src/"
fi
cp "$ROOT/$LICENSE_FILE" "$PACKAGE_NAME/"
if [ -d "$ROOT/docker" ]; then
cp -r "$ROOT/docker" "$PACKAGE_NAME/"
fi
cp "$script_path/install-sources.sh" "$PACKAGE_NAME/"
cp "$script_path/build-common.sh" "$PACKAGE_NAME/"
cp "$script_path/build-prerequisites.sh" "$PACKAGE_NAME/"
cp "$script_path/build-toolchain.sh" "$PACKAGE_NAME/"
cp "$script_path/python-config.sh" "$PACKAGE_NAME/"
if [ -f "$script_path/build.sh" ]; then
cp "$script_path/build.sh" "$PACKAGE_NAME/"
fi
tar cf "$PACKAGE_NAME-src.tar.bz2" "$PACKAGE_NAME" ${TAR_FLAGS:-}
rm -rf "$PACKAGE_NAME"
popd
fi
if [ "x$skip_md5_checksum" != "xyes" ]; then
echo Task [V-1] /md5_checksum/
pushd "$PACKAGEDIR"
MD5_CHECKSUM_FILE="md5-$(uname -m)-$(uname | tr '[:upper:]' '[:lower:]').txt"
rm -rf "$MD5_CHECKSUM_FILE"
$MD5 "$PACKAGE_NAME_NATIVE.tar.bz2" > "$MD5_CHECKSUM_FILE"
if [ "x$skip_package_sources" != "xyes" ]; then
$MD5 "$PACKAGE_NAME-src.tar.bz2" >> "$MD5_CHECKSUM_FILE"
fi
popd
fi
Command Line Build Options
The command line to build this toolchain is:
./build-toolchain.sh –build_type=native,debug –skip_steps=”gdb-with-python, manual, mingw,mingw-gdb-with-python,strip”
This takes many hours on an i3 Intel CPU with 32GB of memory. It also consumes over 30GB of hard drive space, so plan accordingly.
Using the new local copy of the toolchain within STM32CubeIDE
We are going to assume that your source tree was something like the following:
~/src/gnu-tools-for-stm32

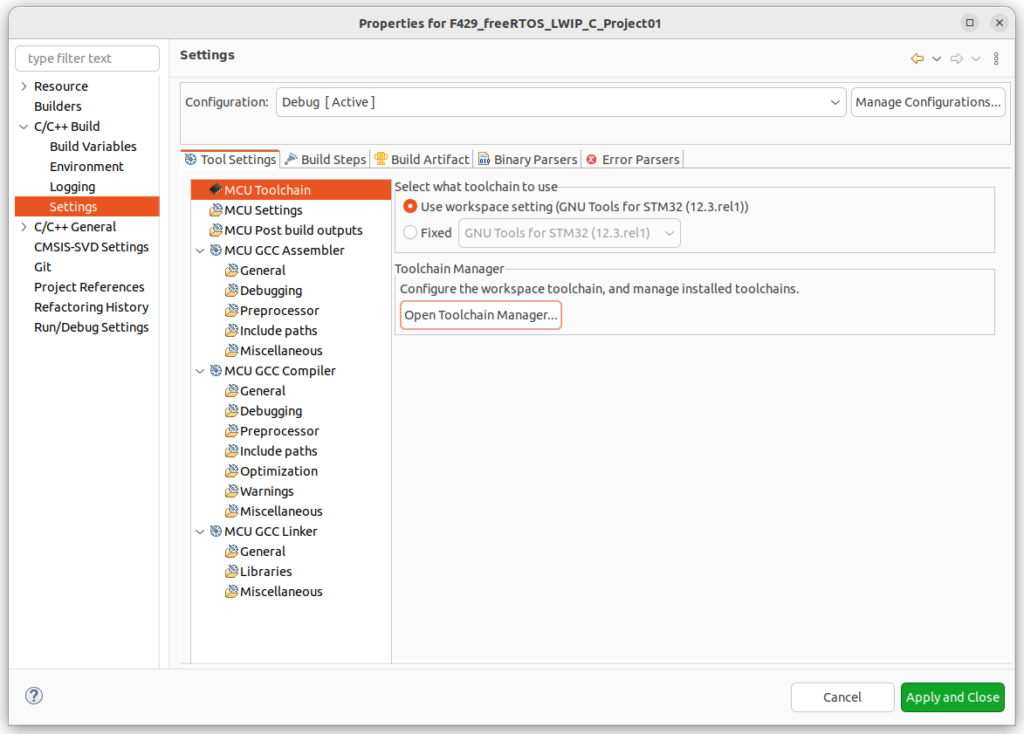

You’ll need to navigate to Project->Settings, then select the MCU Toolchain tab.

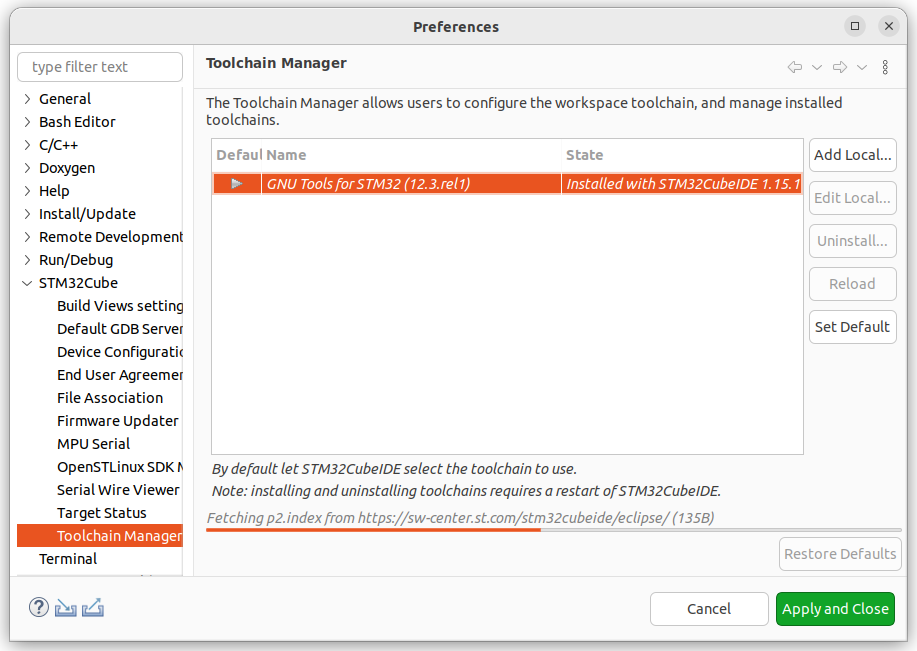

Under the Toolchain Manager section, select “Open Toolchain Manager”

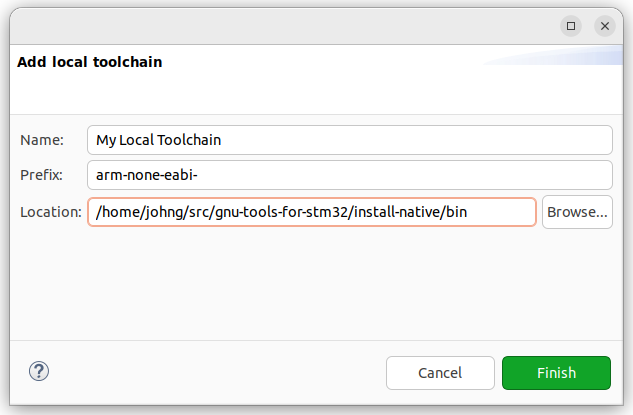

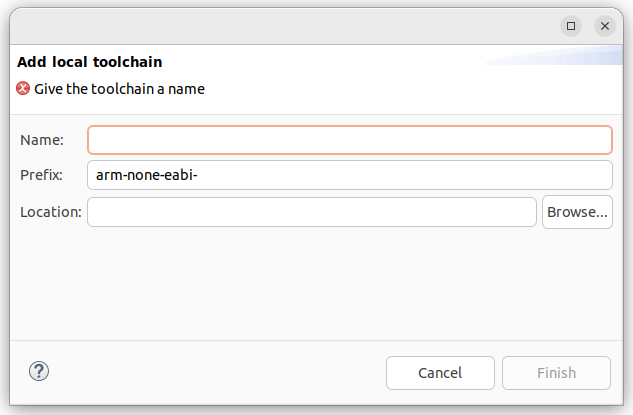

Click the “Add Local….” Button
Finally make the new Toolchain the default toolchain by highlighting your new toolchain in the list and click the “Set Default” button.
Now when you build the project, it will
